Welcome to the used machinery portal "second life" for WAFIOS wire processing and tube bending machines
Advertise your used WAFIOS machine or create a service request to receive a non-binding service offer for your WAFIOS machine.

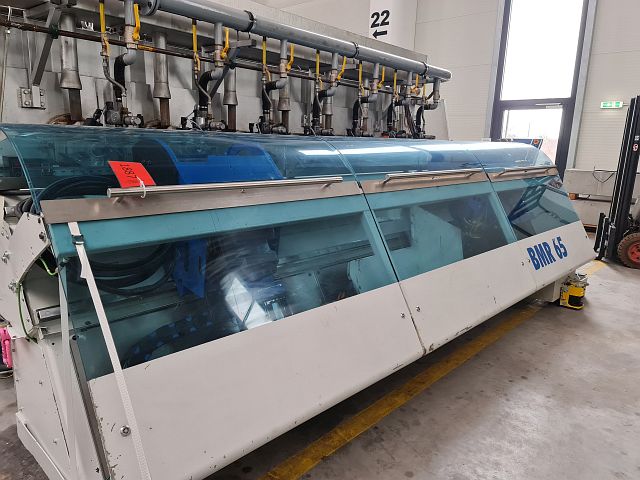

WAFIOS BMR 65, Bj. 2007
ANG00000068
Deutschland
Prodeq Trading GmbH
Frank Goedicke
CH 9527 Niederhelfenschwil
Phone: 0041 71 948 70 60
0€
on request
+ 8-axis CNC pipe and wire bender
+ CNC controlled feeder with pneumatic grippers

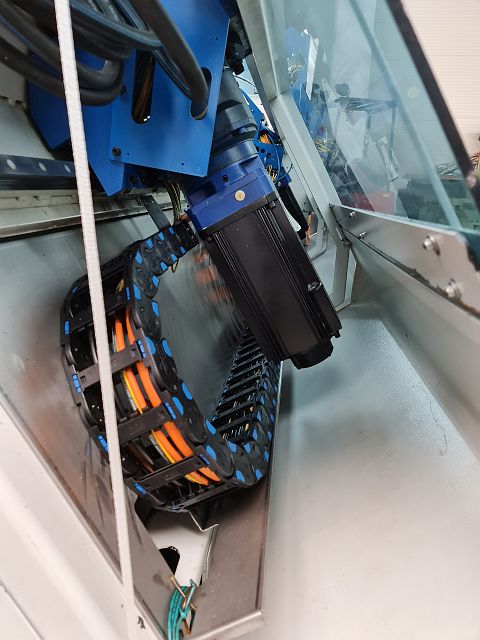

+ separate servo drives for
A-axis: rotation unit 35 mm

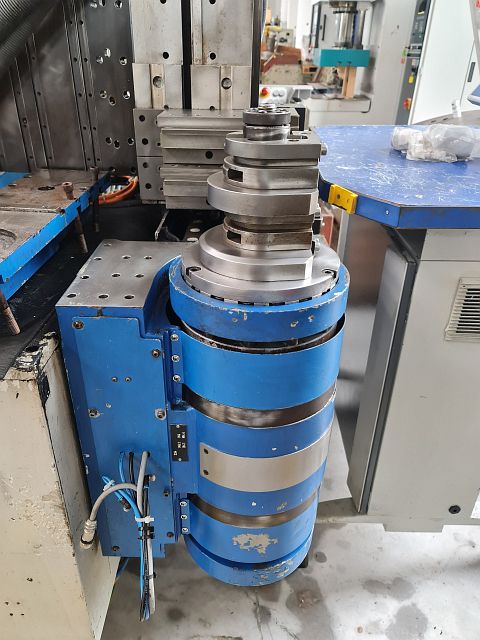

B-axis: bending heand
C-axis: feeder
D-axis: mandrel device
L-axis: slide rail

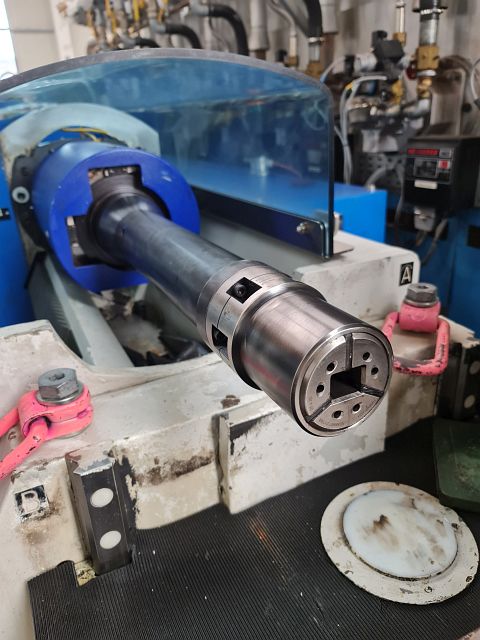

P-axis: chucking device
V-axis: counter holder
Y-axis: bending
Z-axis: bending head up/down
Feeding length 3000 mm
- Company:WAFIOS
- Machine Group:Tube bending machines
- Model:BMR 65
- Type:5065
- Year of Construction:
- Working Area:0 — 0 mm
- Pay Off: No
- Tools: No
- Utility Frequency:50 Hz
- Warranty: No
- Condition: Operational
- Available: immediately
- Ready For Presentation: No
- Manual Existing: Yes
