Welcome to the used machinery portal "second life" for WAFIOS wire processing and tube bending machines
Advertise your used WAFIOS machine or create a service request to receive a non-binding service offer for your WAFIOS machine.
BM 4 - 7552
ANG00000174
D-41844 Wegberg
Kaufmann & Lindgens GmbH
Volker Boos
DE 41844 Wegberg
Phone: 0243298890
28,500€
negotiable
Wir brauchen Platz und bieten an:

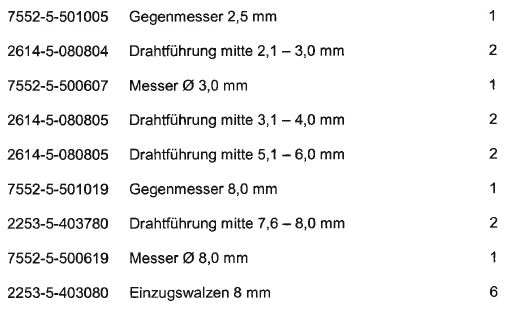

Wafios BM4 (2,5-8,0mm), ohne Mängel/unter Strom/vorführ- u. einsatzbereit (incl. kompletter Satz Drahtführungen, Messer/Gegenmesser, Einzugswalzen)
2016 generalüberholt (Wafios), seitdem <1-schichtig @K&L im Einsatz

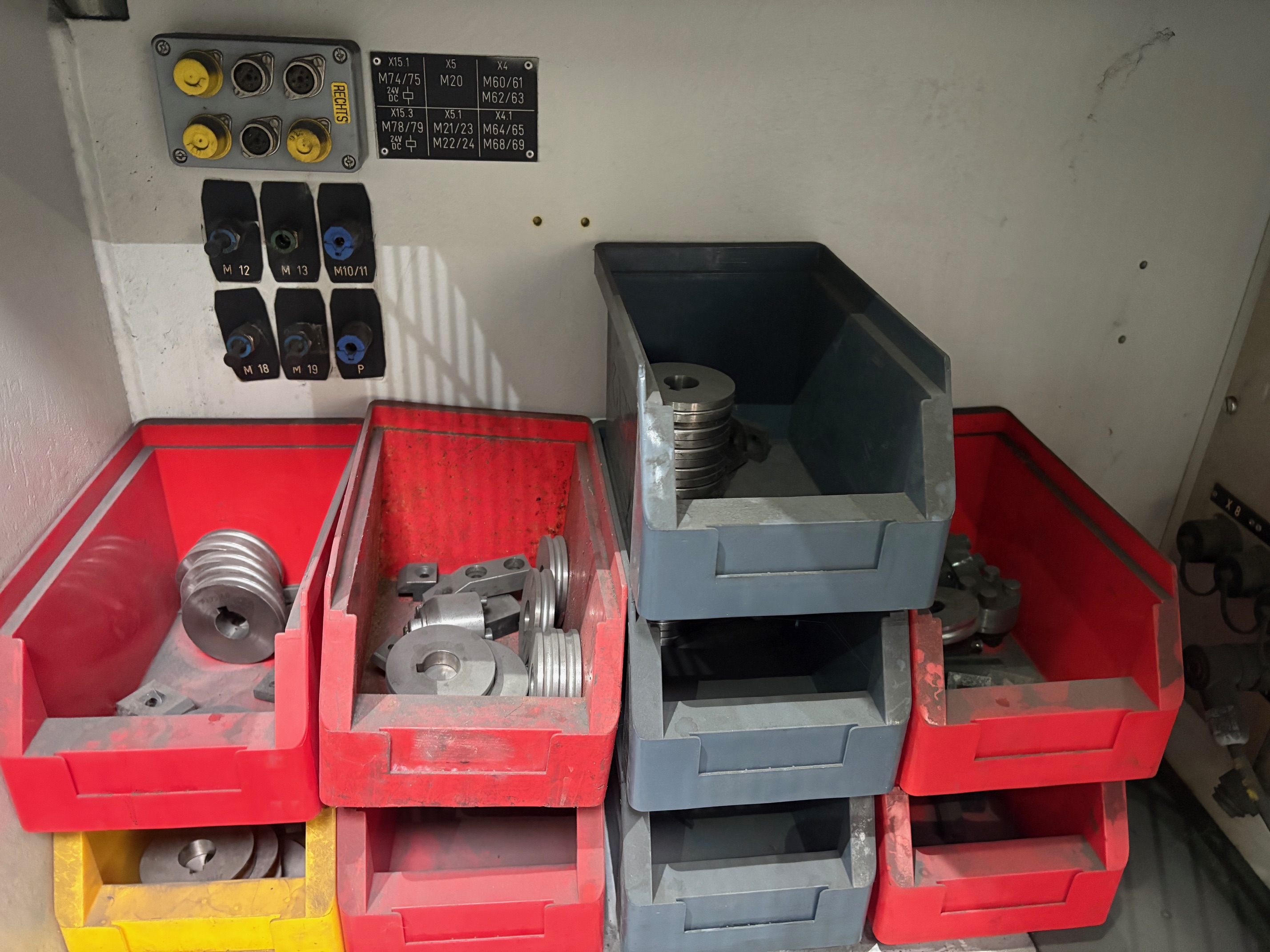

incl. Ablaufhaspel AHL41 (1.200kg Tragf.), Schutzzaun und diversen Werkzeugen

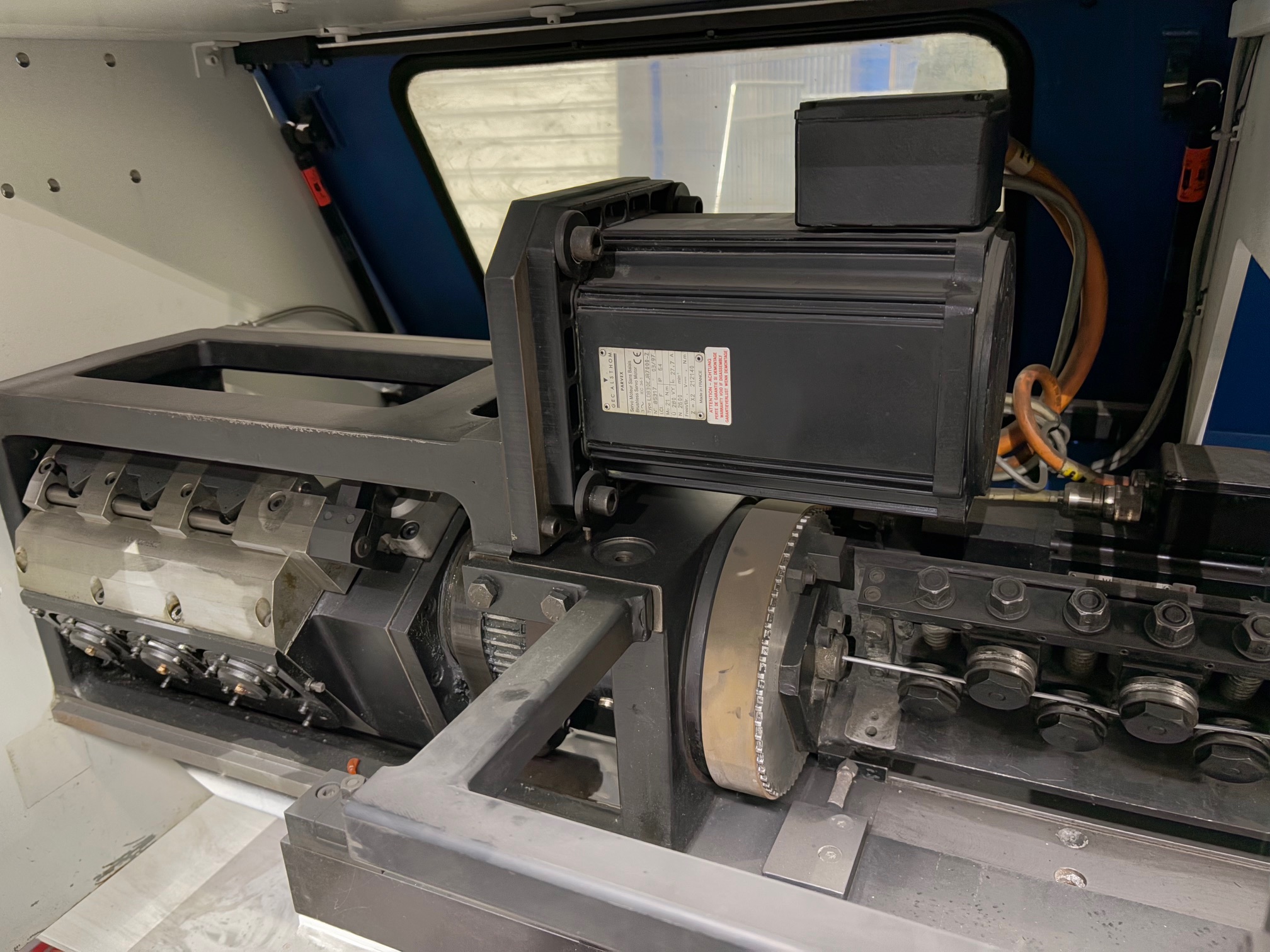

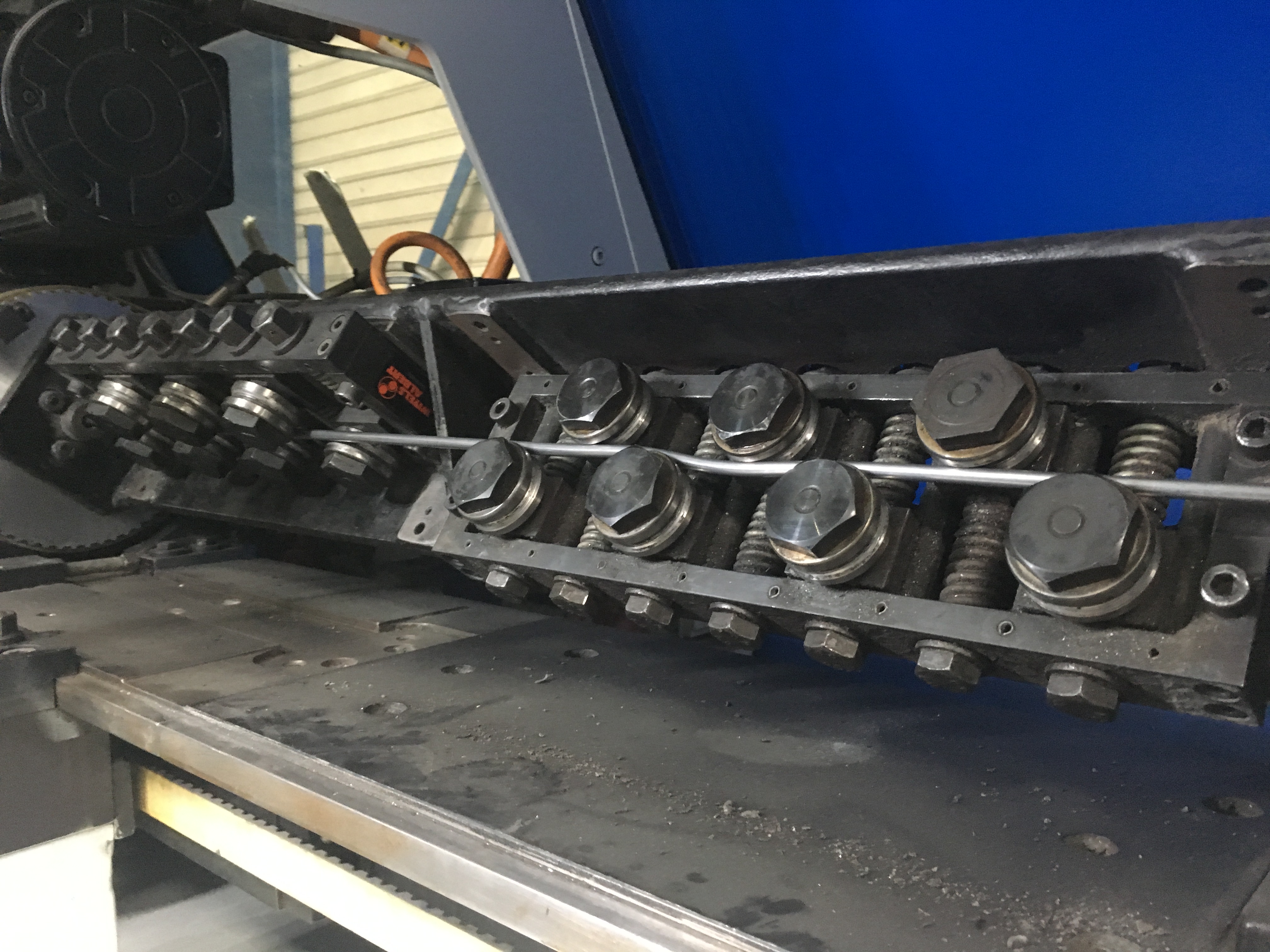

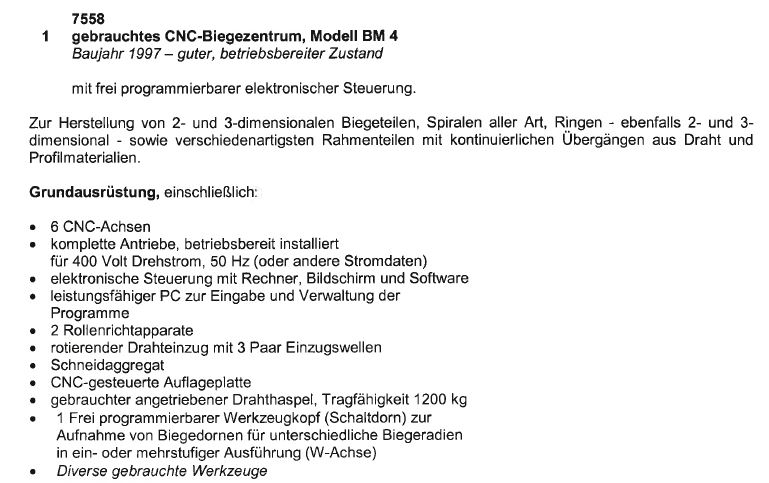

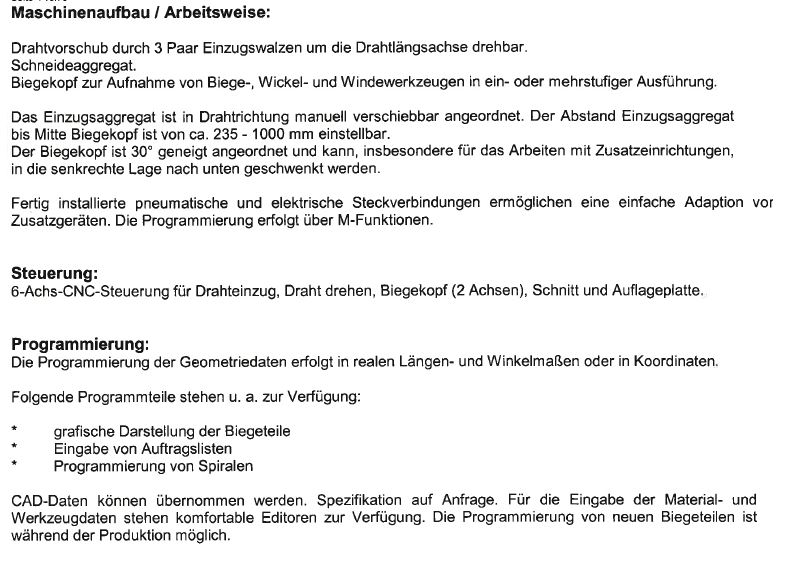

6 CNC-Achsen, Biegekopf 2 Achsen, 2 Rollenrichtapparate, rotierender Drahteinzug mit 3 Paar Einzugswellen, Schneidaggregat, CNC-gesteuerte Auflageplatte, freiprogrammierb. Werkzeugkopf (Schaltdorn) zur Aufnahme des Biegedorns für unterschiedl. Biegeradien in 1- oder mehrstufiger Ausführung (W-Achse)

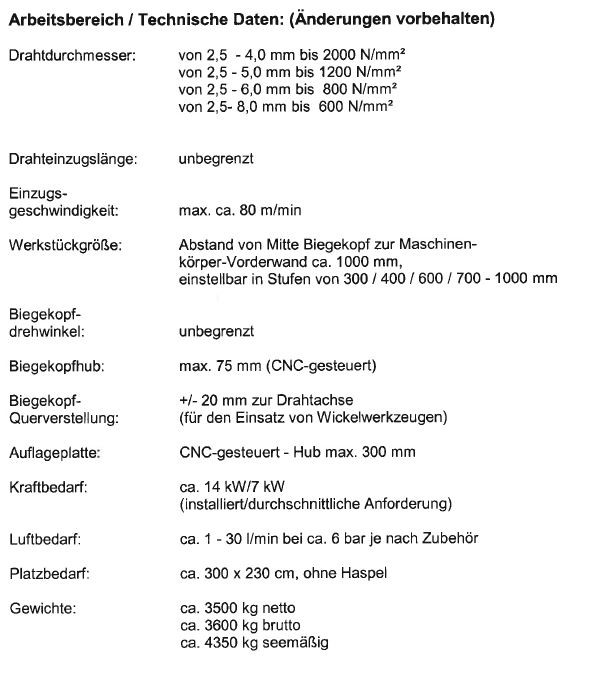

Einzugsgeschwindigkeit: bis 80 m/min
Drehwinkel Biegekopf: unbegrenzt
Hub Biegekopf: max. 75mm
Querverstellung Biegekopf: +/-20mm zur Drahtachse
Hub Auflageplatte: max. 300mm
Abstand Einzug bis Mitte Biegekopf: 235 - 1.000mm
- Company:WAFIOS
- Machine Group:Wire bending machines
- Model:BM 4
- Type:7552
- Year of Construction:1997
- Working Area:2.5 — 8 mm
- Pay Off: Yes
- Tools: Yes
- Utility Frequency:50 Hz
- Warranty: No
- Condition: Operational
- Available: immediately
- Ready For Presentation: Yes
- Manual Existing: Yes
