Wafios FTU 4.3-98

ANG00000168

Buriasco, Italy

Manassero srl
Filippo Manassero
IT 10122 Torino

Phone: +393386950120

0€

on request

Contact

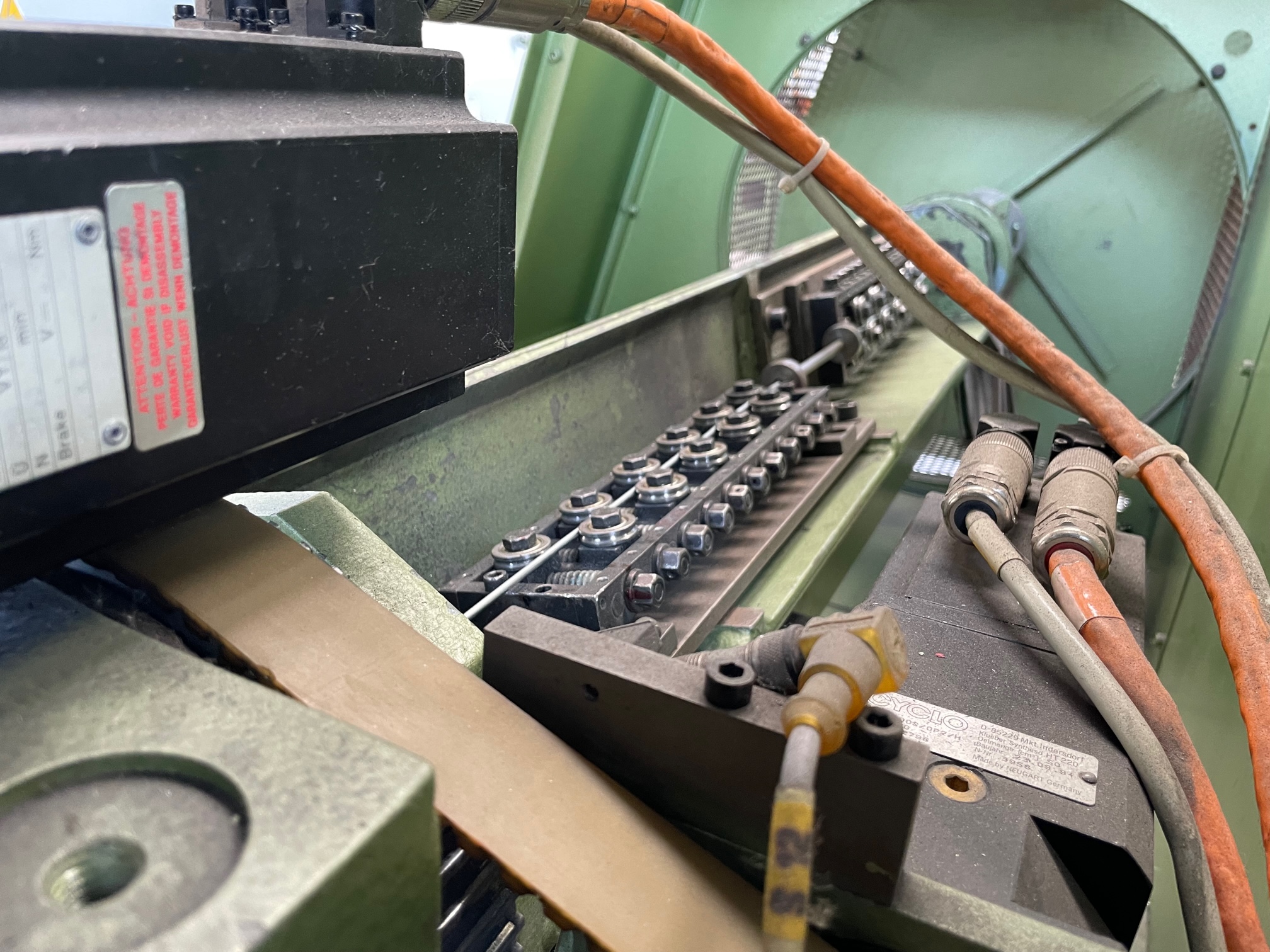

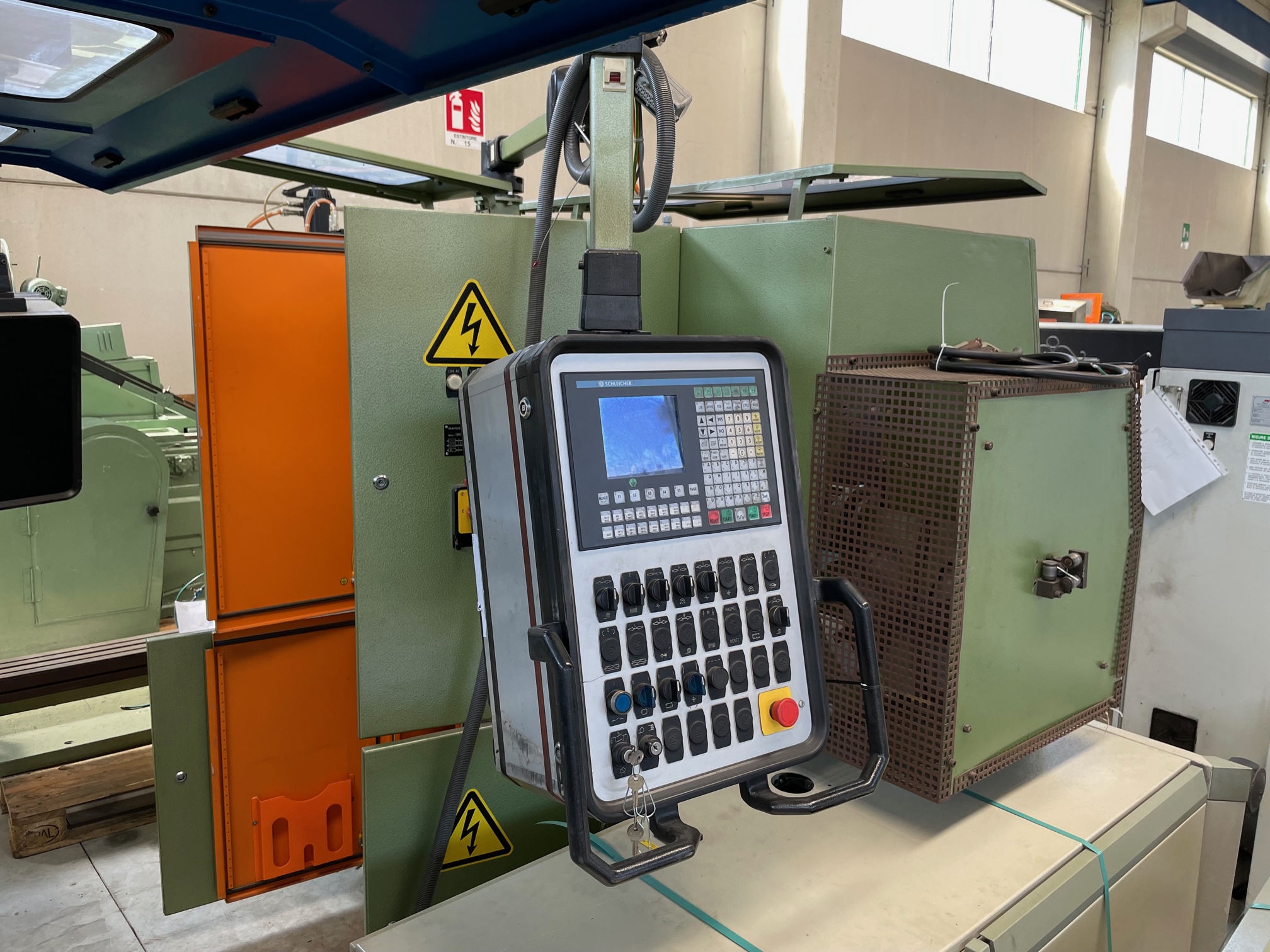

One Coiling and Bending CNC machine Wafios model FTU 4.3-98

Wire dia. at ≤ 2000 N/mm² strength 2.5 - 4.0 mm
≤ 1600 N/mm² strength 2.5 - 4.5 mm
≤ 1200 N/mm² strength 2.5 - 5.0 mm
≤ 800 N/mm² strength 2.5 - 6.0 mm
≤ 600 N/mm² strength 2.5 - 4.0 mm

Feeding speed max 40 mt/min

Pieces per minute up to 80

Wire pull-in length unlimited

Working height to centre of wire feed 1200mm

Manufacture year 1995

Resolution of axis control X - axis, control shafts 0.1°.
Y - axis, winding 1/1000 rev.= 0,36°
Z - axis, pitch 0.001 mm
C - axis, feed, wire feed 0.001 mm
A - Axis, infeed turning 0,1°.
O - axis, cutting 0,1°

Pictures & Video: http://www.manassero.eu/Wafios-FTU.html

  • Company:WAFIOS
  • Machine Group:
    Spring coilers
  • Model:FTU 4.3-98
  • Type:Bending and Coiling machine
  • Year of Construction:1995
  • Working Area:2.5 — 4 mm
  • Pay Off: No

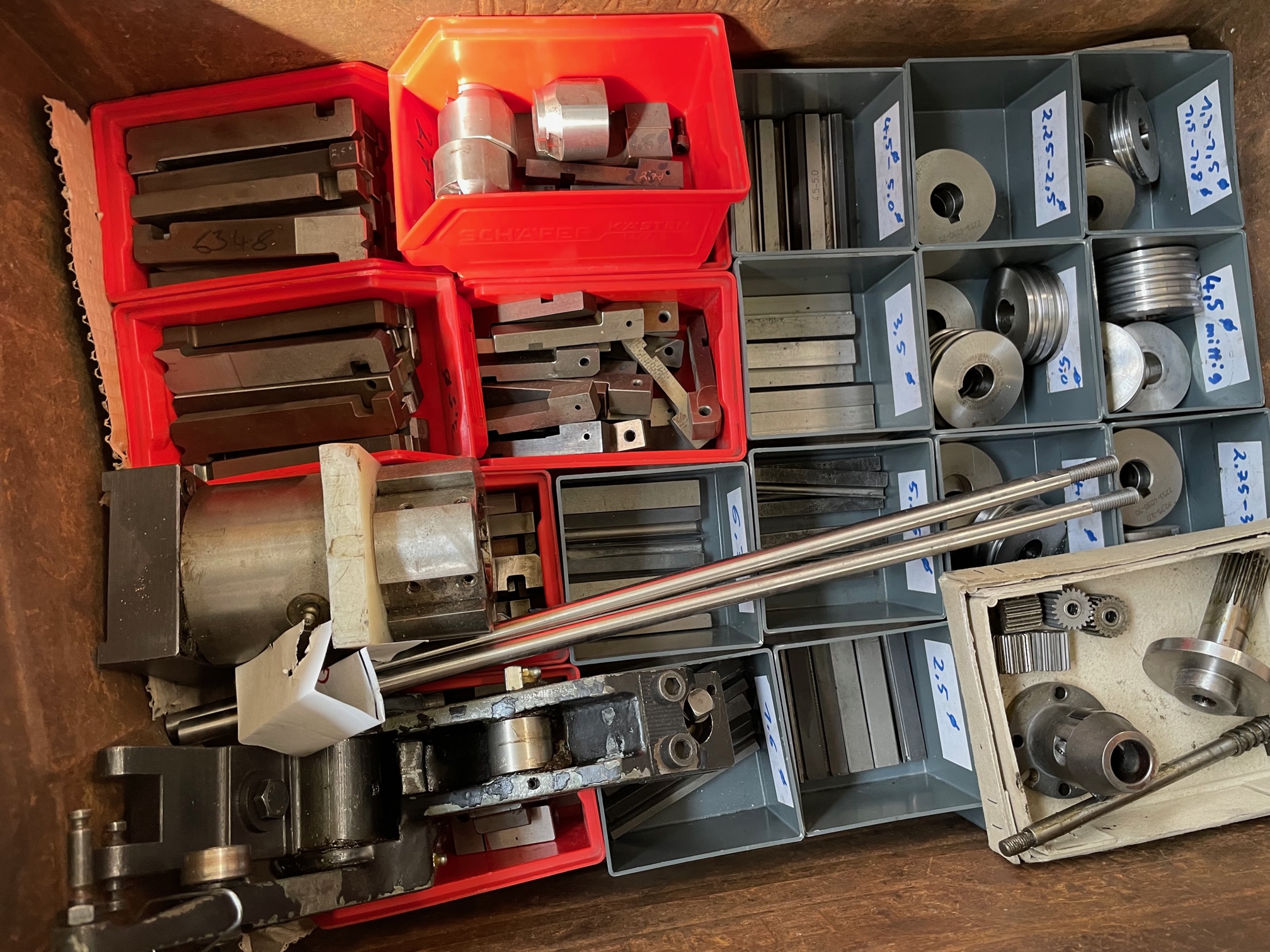

  • Tools: No
  • Utility Frequency:0 Hz
  • Warranty: No
  • Condition: Not Operational
  • Available: immediately
  • Ready For Presentation: No
  • Manual Existing: No
